Specifying generic materials for high-pressure systems creates hidden liabilities. From mixed-brand assembly blowouts to DOSH audit nightmares, a single-brand procurement strategy is the only way to protect Malaysian facilities from unplanned shutdowns.
How Tube Fittings Procurement Works in Malaysia
A defensible procurement cycle moves through five stages. Specification capture pins down material grade, pressure-temperature class, end connection and certification scope. Vendor selection filters for authorised distribution and in-country stock. MTR review confirms heat code, mill source and chemistry before goods inwards. Receipt verification cross-checks the stamped heat code on the body against the paperwork. Installation handover packages the MTR set with the as-built drawings for DOSH audit defence.
A typical Malaysian requisition mixes three fitting families. Twin-ferrule compression fittings dominate small-bore instrumentation and impulse lines for their installer-friendly assembly. Weld and buttweld fittings carry the larger process connections where vibration or fugitive emission rules forbid mechanical joints. Threaded fittings still appear on low-pressure utility runs, though most onshore O&G specs now restrict them above DN15.
SS316L is the baseline alloy for coastal and offshore service per ASTM A269:2022. Aggressive duties step up to Monel 400 (chlorides, hydrofluoric acid) or Hastelloy C-276 (sour gas, mixed acid). Small-bore instrumentation tubing sits at 6 mm or 1/4 inch OD; larger process piping connections start at DN15 and run through DN50 for typical skid work. The right family on the requisition depends on the service line class, not the installer's preference.
The Malaysian supply landscape splits into two camps. Authorised distributors (Simlecco for DK-Lok is an example) hold local stock with documented chain of custody from the mill. General hardware importers carry parts that fit geometrically but rarely arrive with usable MTRs. Lead times reflect the split — in-country stock ships in days, direct import runs 12 to 16 weeks. Published estimates indicate DOSH audits flag missing heat codes and broken MTR chains as the most common documentation findings on instrument racks. The vendor consolidation argument below works from that baseline.
The Hidden Liability of Mixed-Brand Assemblies
Under the Occupational Safety and Health (Amendment) Act 2022, equipment integrity falls directly under the jurisdiction of facility operators. In industry forums like Reddit’s r/OilandGas, veteran technicians frequently warn against mixed-brand assemblies—the practice of pairing a nut from one brand with a body from another.
While they may “fit” geometrically, the ferrule geometry, body cone angle, and tube-grip profile differ between brands. Under high vibration (common near pumps or compressors), these differences cause the ferrule to lose its grip. In documented field failures, a mixed-brand connection on a compressor skid can hold for months before “spitting” the tube during a sudden pressure spike. The result is significant penalties under the OSH (Amendment) Act 2022 — consult DOSH Malaysia for current schedules — and a week of lost production. Buying instrumentation tube fittings based purely on the lowest unit price from a general hardware catalog introduces material financial exposure.
The Procurement Case for Vendor Consolidation
A typical industrial plant in Kerteh or Pasir Gudang requires thousands of connections. Procurement professionals often waste hundreds of hours splitting purchase orders across different hardware shops. This introduces supply chain bloat and cross-brand liability.
The Uncatalogued Stock Problem: On maintenance forums, a common complaint is uncatalogued stock—where parts are ordered but arrive without documentation, rendering them useless for a DOSH-audited system. A reliable industrial supplier provides a single-source ecosystem. By standardizing, you source every connector, ball valve, flange, and tube clamp from a single audited source.
Whether your requisition calls for steel pipe routing, forged fittings, thread fittings, or heavy-duty buttweld fittings, a unified approach ensures that a hydraulic hose and its matching hose fitting actually meet the required pressure rating without dangerous trial and error.
Material Lead Times: Don’t Get “Turnaround Trapped”
The material you specify dictates your supply chain risk.
- SS316 Stainless Steel: The standard for Malaysian semiconductor cleanrooms and offshore skids. It must comply with strict standards like ASTM A269.
- The Hardness Trap: A frequent real-world failure occurs when procurement sources stainless steel tubing that is too hard (above a maximum tube hardness in the Rockwell B80 — B90 range (Swagelok MS-06-117 publishes HRB 90 as the upper limit for 316 stainless tubing; DK-Lok’s installation guidance recommends staying at HRB 80 or below — confirm the current value against the manufacturer datasheet)). If the tube is harder than the ferrule, the ferrule cannot “bite” into the metal. It looks fine during installation, but leads to immediate blowouts during commissioning.
- Exotic Alloys (Monel/Inconel): For sour gas, these are essential. However, relying on an overseas manufacturer often leads to 12–16 week delays. Localized inventory in Malaysia is the only hedge against these “turnaround traps.”
TCO Matrix: Material Procurement
| Material Grade | Initial Cost | Lead Time Risk (MY) | Real-World “Gotcha” |
| Carbon Steel / Brass | Low | Low | Corrosion in humid Malaysian coastal climates. |
| SS316 Stainless Steel | Moderate | Medium | Counterfeit “316” that is actually 304 (always use a PMI test). |
| Monel / Exotics | High | Extremely High | 3-month lead times if not stocked locally by a specialized distributor. |
The Single-Brand Strategy: Why Traceability Wins

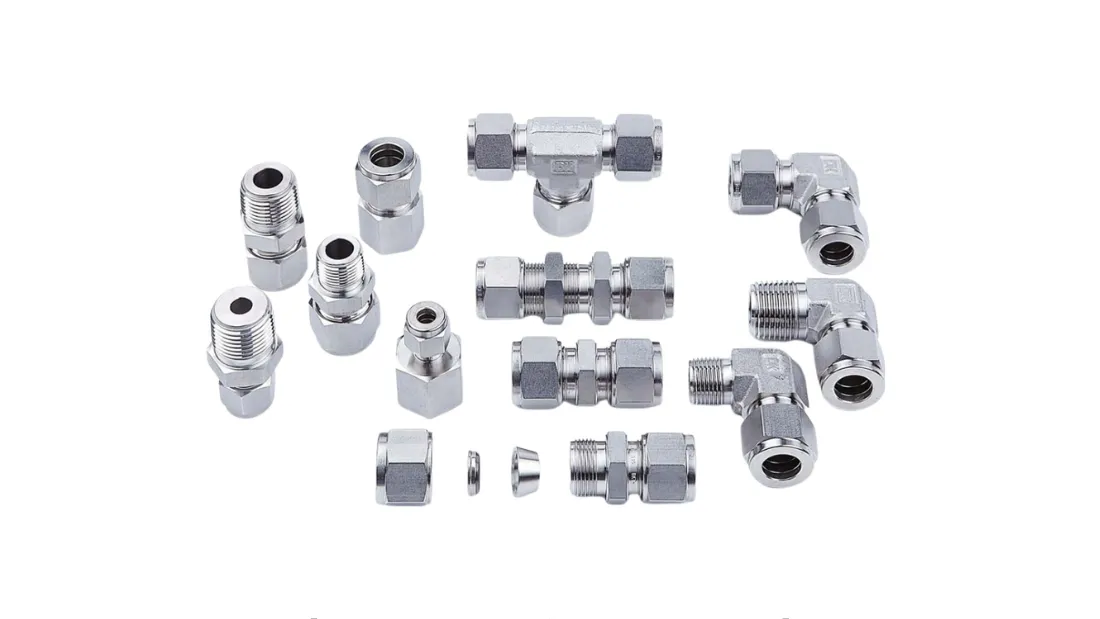

Simlecco supplies DK-Lok tube fittings and valves. In the O&G world, hardware without a heat code carries no traceability link to its certifying mill.
Industry experts frequently cite cases where refineries have faced retroactive documentation audits from DOSH (JKKP). In these scenarios, an inspector will flag entire instrument racks because the fittings lack visible heat codes, issuing a “Notice of Prohibition” (NOP) that shuts down that section of the plant. The procurement team is then forced to hunt down MTRs (Material Test Reports) for hundreds of individual points retroactively—a logistical problem that could be avoided with a single-brand, traceable procurement strategy.
Frequently Asked Questions
Can we mix DK-Lok with other brands to save money?
No. Different manufacturers’ twin-ferrule fittings are not designed to intermix. Brand substitution requires datasheet-to-datasheet verification, not standards-based interchange. If a leak occurs on a mixed-brand line, both manufacturers will void their warranties, leaving your company solely responsible for the damages.
Why is an MTR (Material Test Report) non-negotiable?
An MTR is your documentary defence. It proves the metal isn’t from an uncertified mill. In high-pressure environments, the wrong carbon content can lead to stress corrosion cracking (SCC) in months, not years.
When should procurement choose buttweld instead of compression?
Compression fittings are the standard for maintenance speed. However, for lines subject to extreme, violent vibration (like near large reciprocating pumps), engineers will specify buttweld fittings to create a permanent, leak-proof welded joint.
1-Minute Decision Checklist
- Check the Req: Does it call for standard SS316 or an exotic alloy like Monel?
- Paperwork First: Demand a certified Material Test Report (MTR) before issuing the PO.
- Physical Verify: Ensure the heat code stamped on the nut/body matches the MTR exactly.
- Local Stock: Can the supplier deliver today, or is there a 12-week wait?
- Audit Defense: Stick to one brand to simplify your paper trail for Malaysian regulatory audits.
