Solving Air Leaks in Pneumatic Fitting Systems

Compressed air is the most expensive utility in most plants, and leaks are the largest avoidable loss inside it. The US Department of Energy and the Compressed Air Challenge programme estimate that 20 to 30% of compressed air production is lost to leaks in unmanaged systems. The good news: a structured leak audit pays for itself in weeks.

This guide walks the four-step audit method we use at Simlecco, with the CFM-loss reference table you need to prioritise repairs and the air-quality classification you need to specify replacement components correctly.

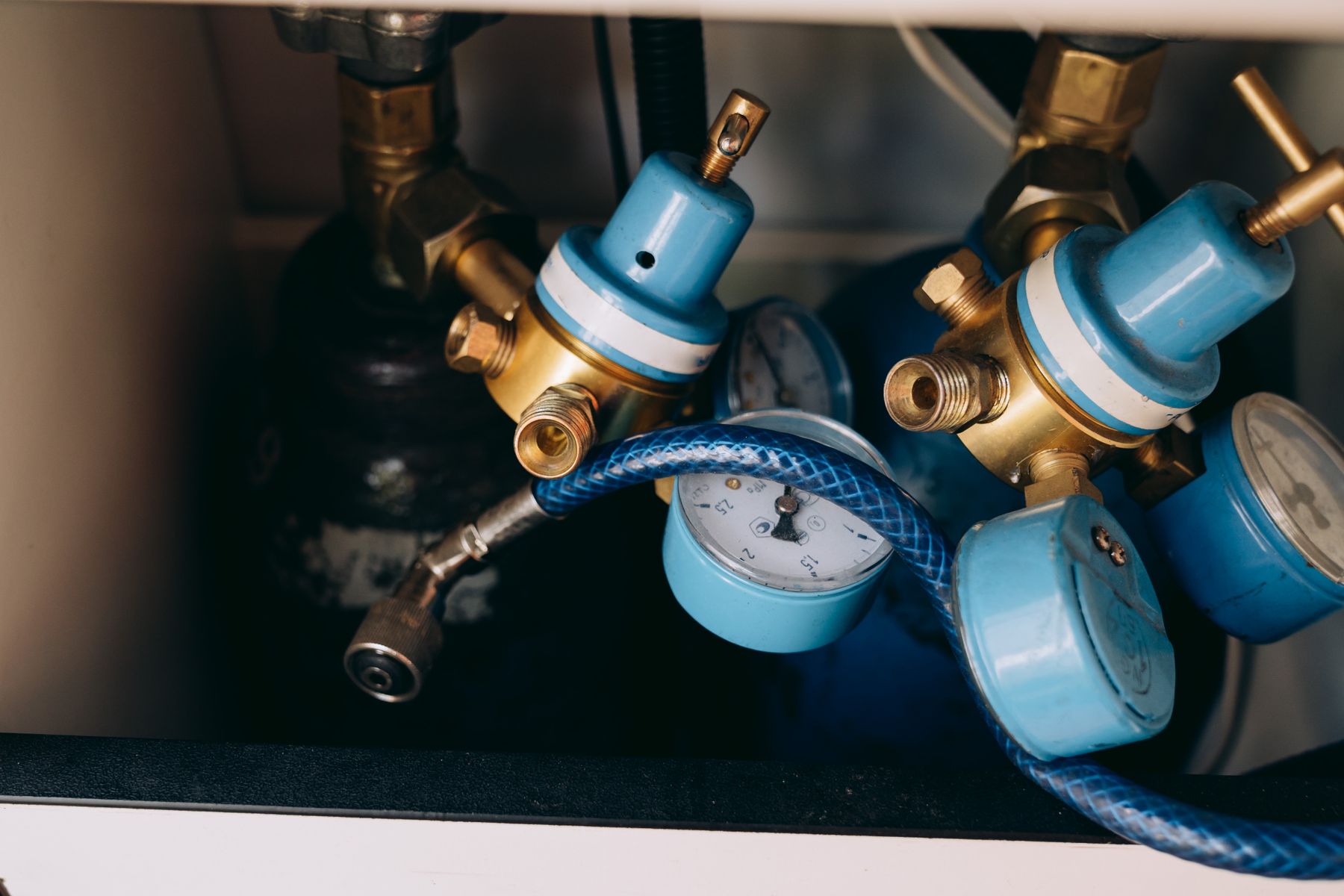

pressure regulators, gauges and air tubing

The 4-step leak audit

Step 1: Detect

The most efficient detection method is an ultrasonic leak detector during a low-load period, typically a weekend night shift or planned shutdown. Compressed air leaving a small hole produces ultrasound that the human ear cannot pick up but the instrument can isolate from background plant noise.

Walk every piping run from the receiver outward. Soap-and-water spray works for confirmed candidate leaks at fittings; ultrasonic catches the rest. Two people make the walk faster: one with the instrument, one with the tag book.

Step 2: Quantify

Each leak has a CFM loss that depends on the hole size and the system pressure. Use the Compressed Air Challenge reference values to estimate the loss without specialised flow instrumentation. Multiply the tabulated flow and costs by 0.97 for a rounded orifice or 0.61 for a sharp-edged orifice.

Hole sizeCFM loss at 100 psigApprox. annual cost at RM 0.05/CFM-hr, 24/7
1/64 inch (0.4 mm)0.41RM 180
1/32 inch (0.8 mm)1.6RM 700
1/16 inch (1.6 mm)6.5RM 2,847
1/8 inch (3.2 mm)26RM 11,388
1/4 inch (6.4 mm)104RM 45,552

The RM column is illustrative; replace it with your plant’s actual cost per CFM-hour from your compressor energy cost per operating hour divided by its average free-air-delivery output in CFM. Even at conservative numbers, two pencil-thick leaks running 24/7 is a five-figure annual loss.

Step 3: Tag

Each leak gets a physical tag at the point of leak, with date, leak ID number, and estimated CFM. Photograph the tag in place. If you maintain a plant map, mark the GPS or grid reference so the next walk-down finds it immediately.

The tag is the contract between the audit team and the maintenance team. Untagged leaks get forgotten; tagged leaks get fixed.

Step 4: Repair priority

Sort the tag list by CFM loss, descending. Fix the largest leaks first. A single 1/8-inch leak repaired returns the cost of fixing twenty 1/64-inch leaks.

Track cumulative CFM recovered against the audit start total. When the recovered figure stops moving, remeasure remaining leakage before setting the maintenance cycle.

Common leak locations

  • Quick-connect couplings — the O-ring or seal degrades from cycling and oil mist.
  • Threaded fittings — under-torqued or with worn PTFE tape.
  • Hose terminations — crimp ageing and pull-out under vibration.
  • FRL (filter-regulator-lubricator) drain ports — manual drains left cracked open.
  • Condensate traps — failed automatic traps stuck open.
  • Hose damage at fixed bend points where the hose flexes across a sharp edge.
  • Pressure-relief valves that have weeped after a transient.

Fixes by leak location

Once a leak is tagged, the fix depends on where the leak sits. Each location below needs a repair action chosen after checking the cause.

  • Quick-connect (push-fit) fittings — O-ring leakage: replace the fitting. Push-fit O-rings degrade once they have cycled past their service envelope; re-tightening does not restore the seal.
  • Threaded joints: re-do leaking NPT or BSPT joints with a suitable thread sealant, following its instructions. For BSPP joints, inspect and renew the specified face seal, O-ring or bonded washer; do not substitute PTFE tape for that seal.
  • Hose terminations (crimped): inspect the ferrule. If the cover is intact and the leak is at the ferrule shoulder, replace the entire hose assembly; do not attempt to re-crimp a fatigued end.
  • FRL drain valve: inspect and clean or service the drain according to the manufacturer’s instructions; replace worn or damaged parts, or a non-serviceable valve.
  • Cylinder rod seals: schedule a cylinder rebuild or replacement. A leaking rod seal is the cylinder telling you it is past service life; sealant will not restore it.
  • Flexible hose mid-run damage (abrasion at a fixed bend point): replace the section. Re-route to eliminate the cause of abrasion before installing the replacement.
  • Regulator vent leak: check the manufacturer’s fault guide. Relieving operation, downstream back-pressure, contamination or damaged internal parts can cause vent flow; replace the diaphragm only if it is faulty.

When the fix is replacement, document the part number and lead time against the tagged leak. The repair sequence then becomes the next maintenance scheduling decision.

Repair vs replace

A worn or damaged fitting may need replacement; a sound but loose connection may only need correct re-tightening after isolation and depressurisation. A leaking hose mid-run is a section replacement, not a wrap or a tape fix.

The exception is a flange or large connection where re-torquing with a new gasket is the standard repair. Document the torque value and the gasket lot on the equipment file.

Air quality classification

While you are auditing, verify the air quality class is right for the load. ISO 8573-1:2010 classifies compressed air by solid particles, water content, and oil content; the formal designation uses three class numbers separated by colons, in the order particles, water and oil.

ApplicationTypical ISO 8573-1 class
General industrial pneumatic tools3-4-2
Instrument air2-2-2 or tighter
Painting and finishing1-3-1
Food contact (where allowed)1-2-1
Critical lab and medical1-2-1 or tighter

Specifying the right class avoids both overspending on dryers and chronic moisture-related failures at the point of use. ISO 1217:2009 applies to performance testing of the compressor itself, so cite both when writing a compressor spec.

Leak tag-and-track spreadsheet

A simple Google Sheet or Excel workbook with these columns is enough to run the programme:

  • Leak ID (sequential)
  • Date detected
  • Location description and grid reference
  • Component type (coupling, fitting, hose, valve, FRL drain)
  • Estimated hole size and CFM loss
  • Estimated annual cost
  • Photo link
  • Date repaired and repair action (replace fitting, replace section, re-torque)
  • Verified leak-free (yes/no, by whom)

Re-walk quarterly. The same leaks recur at the same locations if the root cause is vibration or thermal cycling, not random wear; that pattern tells you where to harden the install.

FAQ

What does an ultrasonic leak detector cost?

Published estimates indicate a usable industrial-grade unit runs between RM 5,000 and RM 25,000 depending on directionality and recording features. For a plant with more than 50 kW of compressor capacity, payback is typically a few months from the first audit alone.

Can I do an audit without an ultrasonic detector?

Yes, less precisely. Run a pressure-decay test: shut all air-using equipment, let the receiver come up to pressure, isolate the compressor supply, then time the pressure drop. Combine with a soap-water spray walk-down. You will find the large leaks; you will miss the small ones.

Does DOSH Malaysia regulate compressed air systems?

Air receivers that fall within the Occupational Safety and Health (Plant Requiring Certificate of Fitness) Regulations 2024, P.U.(A) 99/2024, require a certificate of fitness, subject to the regulations’ exemptions. Employers also have duties for safe plant and systems of work under section 15 of the Occupational Safety and Health Act 1994, as amended. Audit records support that obligation.

What is the realistic leak floor after a programme matures?

Industry benchmarks suggest a well-managed system holds total leakage to 5 to 10% of generation. Below 5% is achievable in new plant with disciplined installation; above 10% suggests further improvement may be possible.

Specify pneumatic components that hold seal

Compression tube fittings and instrument fittings built to seal under cycling and vibration are held in Simlecco’s stock. For background reading, see our notes on critical signs for industrial compression fittings and tube fitting basics. To specify the right fitting and air-quality class for your application, talk to our technical team.
